Name | mist sprayer | mist sprayer | ||
specifications and models | FS63 | FS70 | ||
Residual liquid (L) | <0.1 | <0.1 | ||
Power Supply | 12v Rechargeable battery | 12v Rechargeable battery | ||
Rated spray volume (L/h) | 100 | 120 | ||
Gasoline consumption (L/h) | 2.5~3 | 3~3.5 | ||
Nozzle inner diameter (MM) | 28~30 | 30~32 | ||
fuel tank capacity (L) | 2.0 | 2.0 | ||
Pesticides box volume (L) | 13~15 | 13~15 | ||
Fuel | Petrol 92 | Petrol 92 | ||
work environment | -10°C~25°C | -10°C~25°C | ||
net weight (KG) | 9.0 | 9.5 | ||
size (L*W*H MM) | 1100*400*310 | 1340*400*310 | ||

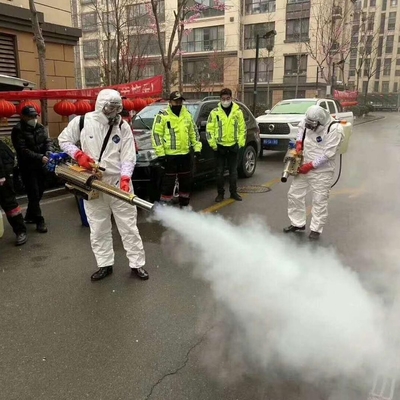

*This machine can be widely used in crops, economic forest, cotton, greenhouse crop spraying insecticide, as well as the warehouse,wharf, the army camp, the sewers of the city, farm compartment, residential areas, urban environmental *This machine uses the high speed gas generated by the pulse engine to spray the psticide iquid, and the diameter of the pesticide iquid is less than 50 microns. Pesticide liquid particles are smal, good dfuie. Crops or places are surounded by smoke, no dead ends, the smoke of pesticides drecty contact with the pest, the eficyc of the fll play the eradication of pests and diseases in 90%，and the use of drugs than the taditinal mechanical save more than 1/3, the eiciencyn of 60-80 mu /h, improve the work efciencec of 15 times, and in the large area of disease and insect pests occur, can quickly control. The machine uses high-tech materials, elaborate, light weight, long service ife. With itte or no water, it greaty reduces the labor intensity of theoperator. Simple structure, low failure, easy maintenance. *Machine operation technique is a new technology that can be used to prevent and cure the fine particles, which is sprayed on the crops under the condition of normal temperature. Mainly used for crops, vegetables, flowers, etc, the control of pests and diseases. The core part of the machine is: gas liquid phase flow nozzle.Under the action of the high speed air flow, a partial vacuum is formed in the nozzle, and the pesticide aqueous solution is inhaled. The compressed air and the pesticide aqueous solution mixing at the nozzle edge, then ejected. As the pesticide aqueous solution is less than 20 micron, so can float in the air 2-6h, and can even float in every corner of the crop,control effect is very good. | ||||
