Good quality building material stores small pellet machine for producing 4mm/6mm/8mm pellets

1 Set
MOQ
$3,999.00(1 - 4 Sets) $3,959.00(>=5 Sets)
価格
Good quality building material stores small pellet machine for producing 4mm/6mm/8mm pellets
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Raw Material Processed: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks
Pellet Diameter (mm): 4 - 12
Output (kg/h): 200 - 350 kg/h
Voltage: 380V,50Hz, 3Phase
Dimension(L*W*H): 1200*600*1300mm
Motor Power (Kw): 22
Power (kW): 22
Warranty: 5 years
Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Food Shop, Food & Beverage Shops
Key Selling Points: Multifunctional
Weight (KG): 530 KG
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 5 Year
Core Components: Motor, Gearbox
After-sales Service Provided: Online support
Pellet diameter: 4-12mm
Pellet length: Can be adjusted
English manual: provide
Power: 22KW
Color: Customers' Demands
Name: Small Wood Pellet Mill Feed Pellet Machine
Pellet Diameter: 4-12 mm
Capaciy: 200-350 kg/h
Warranty period: 12 months
基本情報
お支払配送条件
Packaging Details: Wooden fumigrated box
Supply Ability: 1000 Set/Sets per Month
製品の説明

                               Factory Price 4mm/6mm/8mm Diameter Small Feed Pellet Machine



Introduction:

Our VIC-K system biomass pellet mill is one new generate ,high performance biomass environment equipment,it not only can make good pellets from all kinds of wood, straw, green waste but also can get feedstuff pellets from all kinds of grains like corn, oil cake for animal food .



Feature:

(1)It is used the cold press forming technique, polishing craft, good apperance, compact structure;



(2)High capacity, low consumption, low noise, little trouble, high efficiency , continuous work, economic and durable;



(3)Whole machine is made by special high quality material, and driven with KAF three-level high-precision gear box,working stability, main parts are used the high quality alloy steel with durable material, lifetime is bigger 5-7 times than common pellet mill.



Main data:



Model

Motor
(KW)

Capacity
(kg/h)

Weight
(kg)

Packing size(mm)

Raw material moisture (%)

VIC-200K

11

100

280

1000*600*1000

13-21

VIC-300K

22

200-350

530

1200*600*1300

13-21

VIC-400K

30

400-600

1400

1400*800*1400

13-21

VIC-500K

55

800-1000

2300

1800*1000*1550

13-21

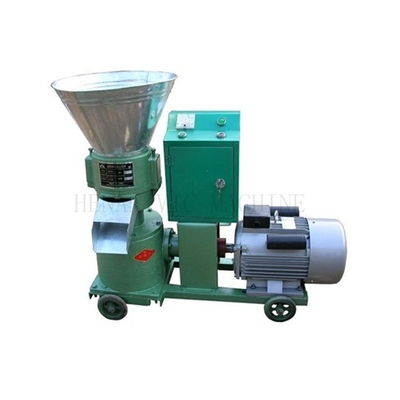

Photos of machine :











Photos of spare parts :







Finished Pellets :

(Wood pellets)





Feed pellets :




Packaging & Shipping







All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.









Our Services

Quality guarantee terms:



Quality guarantee is one year. Spare parts we supply at factory cost lifetime.



We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
