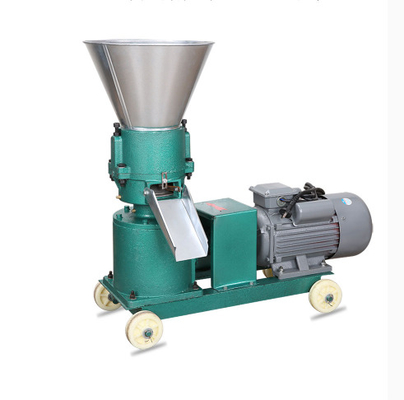

Feed pellet making machine flat die poultry feed pellet mill machine to make animal food
Pellet Machine is used for made pellets from different kind of biomass materials, wood, rice straw into pellets.
Raw material
1.sawdust, rice husk,straw, grass,crop stalks etc. biological fertilizer, animal manure
2.Moisture required: 10-15%
3.Size:3-5 mm
Final Pellet:
The Pellet Diameter is Dia 2.5mm, 4mm, 6mm, 8mm, 10mm, 12mm, etc,At option.
Feature
1.Powered by both diesel engine ,gasoline and motor,PTO driven.
2.High efficiency centrifugal,high pressure.
3.Low noises,low wear rate,pressure roller die long service life.
4.Pellet Machine can equipped wheel,move around.
5.Machine can be used for making feed pellet,also make wood pellets.
Working principle
The machine can compress powder size raw material into pellet directly. There is no need to add water during processing, the temperature will reach 70 ℃ -80 ℃ automatically,which can make starch gelatinized protein coagulate and denature.
Finished pellets are deeply ripened inside, the surface is smooth, hard, and the length can be adjusted.The pellets are not easy to mold and can be stored for a long time. It is an ideal equipment for aquaculture and poultry farm breeding.
Detail Image of pellet machine
Processing of Pellet Machine
1). Crushing ( Make the raw materials to be sawdust )
2). Conveyor (Delivery material into dryer machine )
3). Dryer Machine ( If the raw materials has too much moisture)
4). Conveyor ( Delivery material into pellet machine )
5). Pelletizing ( Convert sawdust into Pellets )
6). Cooling and packing ( Cooling pellet ,and packed pellet into bag for selling )
Technical parameter
Model | Power(kw) | Capacity(kgs/h) | Weight(kg) | Packing Size(cm) |
AKK-125 | 3 | 80-100 | 95 | 110*35*70 |
AKK-150 | 4 | 90-150 | 98 | 115*35*80 |
AKK-210 | 7.5 | 200-300 | 110 | 115*45*95 |
AKK-230 | 11 | 350-450 | 150 | 138*46*100 |
AKK-260 | 15 | 400-500 | 190 | 130*53*105 |
AKK-300 | 22 | 500-700 | 400 | 130*51*121 |
AKK-360 | 22 | 700-800 | 600 | 140*56*160 |
AKK-400 | 30 | 900-1200 | 750 |
150*61*180 |
AKK-500 | 42 | 1200-1600 | 800 | 160*67*145 |
Our advantage:
1.10 years of manufacturing experience,professional and delivery on time.
2.Outstanding quality and design,specified expert on inspection of product and design chart.
3.We can offer turnkey service and give our best recommendation to customer,process line design, equipment installation and operate training.Engineer is available to offer instruction on line or go overseas installation and repair.
4.One year warranty of all machines and lifetime supply of parts.
Related machines
Hammer mill crusher | Wood pellet mill |
Anyang Ainuok After 10 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and now open the world market, service to more than 100 countries, such as England, Russia, Sweden, Poland,South Malaysia, Indonesia, Vietnam, etc.
Before-sale services
1. Full time on line and in-time reply to your inquiries.
2. Recommend most suitable machines and line according to customer’s requirement.
3.Introduce details of the machine with pictures or video for your good acknowledgement.
Sales service
1. Customized machine according to your request. 2. Test and inspect every machine with strict quality control. 3.Packing with standard export wooden box after you confirm the machine
After-sales service
1.Offer the professional engineer assist you to use the machine. 2.Offer technical support and professional engineer help you solve problems while using it. 3.Quality warranty for one year. Free repair for quality problem during one year.Spare parts only charge cost price after warranty.
If you're interested in our equipment, please kindly reply us the following question:
1. What's the wood hammer mill production capacity do you want?
R:We can supply hammer mill or hammer mill production line with output from 0.5-20t/h.
2. What's your raw material situation to crush?Size and Moisture.
R:Our cassava hammer mill can crush all kinds of wood chips,
wood branch,corn cob,straw,etc,advise moisture <60%.
3. What's the final crushed product size do you want?
R:Our hammer mill can match screen 2mm-12mm,final product powder or particle product.
4. What's your country industrial electricity voltage?
R:General standard motor in China work under 380V,50Hz,3Phase,if not match,tell us we can modify motor.
